Name: Custom Aluminum Corner Door
Brand: URBN Patio Doors
Availability: InStock

TWO ROOMS. TWO DOORS. ONE EXTRAORDINARY EXPERIENCE.

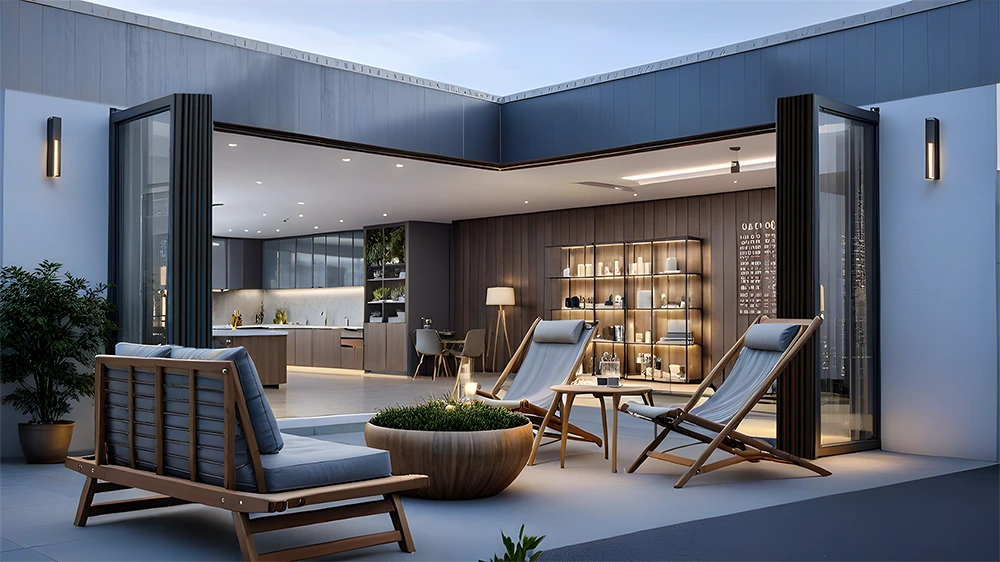

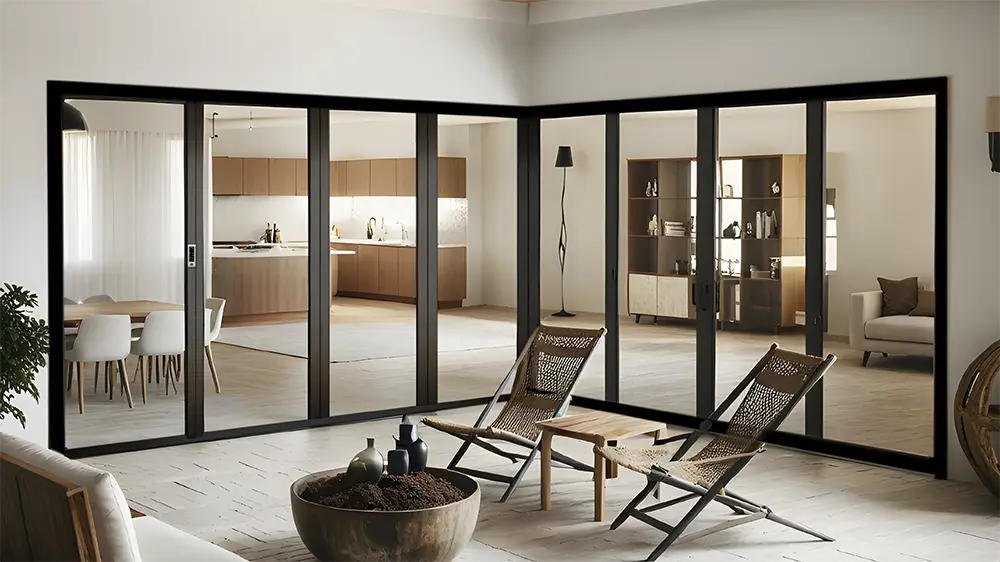

Folding corner doors are the pinnacle of luxury and modern living, offering an unmatched connection to the outdoors. Unlike standard doors, these architectural marvels open-up not just one but two entire walls, meeting seamlessly at a perfect 45-degree angle.

The panels glide away effortlessly, eliminating barriers and creating a breathtaking, unobstructed view. No columns. No posts. Just expansive scenery and the liberating sense of limitless space. For those who crave a home that blurs the line between inside and out, folding corner doors deliver a truly magical transformation.

For added comfort, URBN's retractable screens integrate seamlessly to the Corner folding door, delivering year-round usability in a refined, intelligently designed solution.

KEY FEATURES

• U-value 0.28 meets Title 24 California requirements.

• Custom Sizing: All our doors are built to your specifications.

• Hinge-free individual panels.

• Ultimate flexibility with full, independent panel control for year-round use.

• From one panel to expansive opening widths.

• Maximum height of 10 feet.

• Bottom rolling design, reduces structural demands, construction costs and time.

• One main door: all panels glide and stack next to the main door.

• Two main doors: Choose the number of panels to slide and stack on each side.

• Patent Pending upgraded operational hardware featuring new hold-open-panel.

• In-swing or out-swing

• Robust, thermally-strong frame, resists thermal-bowing.

• Slimmer frame maximizes glass area, views and light.

• Panel's covers with built-in weather seals.

• Single finish color or Dual-tone colors.

• Smart lock in every door.

• Guided installation with and URBN technician on-site, included in purchase.

• 10 Year Warranty.

• Priced below similar systems.

Max Panel width
Height – Panel width
8ft.                  40”
9ft.                  37”
10ft.                 34”

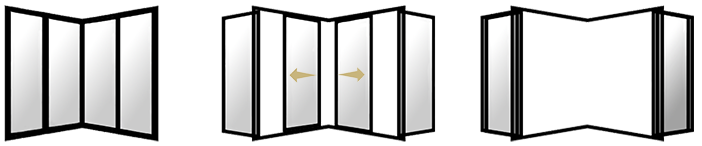

SLIDE AND STACK OPERATION

TO OPEN EITHER SIDE OF THE CORNER DOOR

• Unlock and open one of the main doors. Push the inside button, use key for manual lock.
• Slide the next panel towards the end until stops, grab and turn the handle upwards.
• Swing the panel open and stack next to the main door.
• Repeat the same process with the rest of the panels.
• Follow the same steps to open the other side

TO CLOSE
• Start with either side and swing the first panel fully onto the track.
• Grab and turn the handle downwards.
• Slide the panel to its original position.
• Repeat the process with the remaining panels.
• Close your main door, smart lock will automatically lock, use key for manual lock.
• Follow the same steps to open the other side.

Request a Quote

IN-SWING AND OUT-SWING CONFIGURATIONS EXAMPLES

Here's what you need to know:

Our corner door systems start with a minimum of 2 panels for each side of the door section. From there, you can add as many panels to either side as your project requires, there's no cap. The only key detail to keep in mind is making sure the opening header is structurally sound to span the width of the opening and support the corner, with minimal deflection during settlement.

Inside Corner

Outside Corner

INSWING AND OUTSWING CONFIGURATION EXAMPLES

All of our door systems can be made In-swing (Panels open to the interior) or Out-swing (Panels open to the exterior). You can place an unlimited number of panels in a system; these are just some examples of the different configurations we offer. Minimum number of panels to slide to one side is two.

5 Panel systems

Two main doors

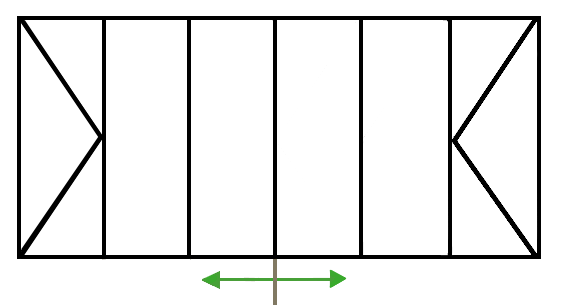

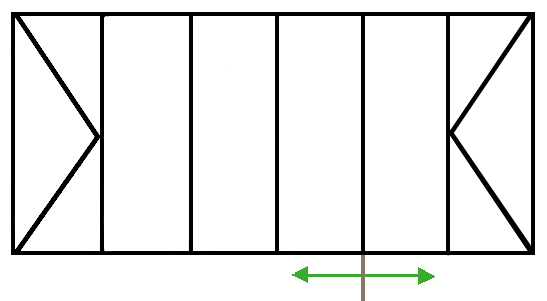

6 Panel systems

Two main doors

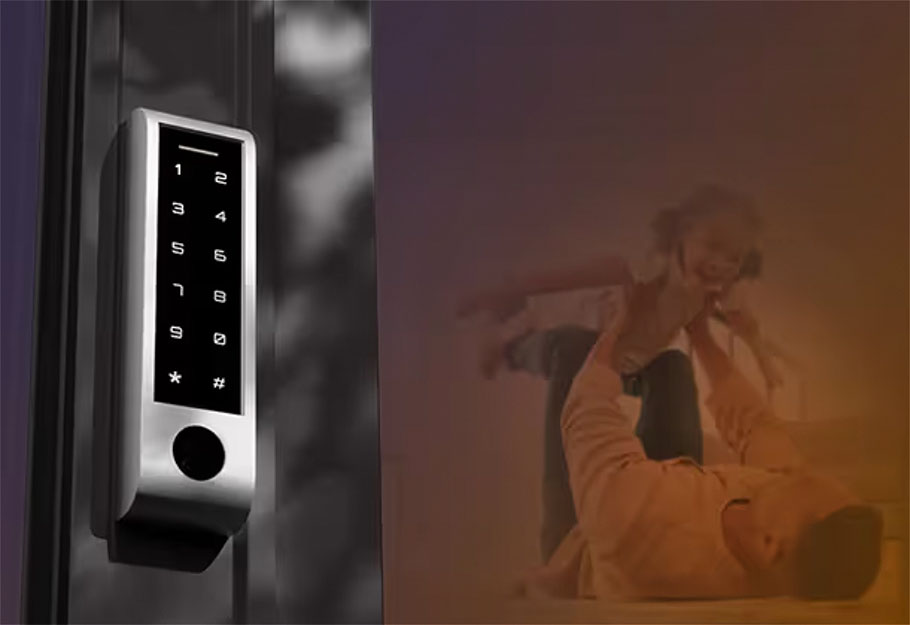

ELECTRIC SMART LOCK AS STANDARD

Control your door remotely, create temporary access codes or deactivate with ease. With auto-lock functionality, your door secures itself once closed. Even during a power outage, the built-in battery backup ensures continued protection.

Access your home your way:
• Smartphone Access — Lock and unlock from anywhere.
• Code Access — Create and share unique codes.
• Key Fob Access — Quick and secure, right in your pocket.
• Fingerprint Reader — Effortless entry at your fingertips

GLASS

LoE-366 unlike clear glass, it’s designed to treat different parts of the solar spectrum in a unique way. Its coating acts like a selective barrier, significantly reducing infrared light that causes heat buildup, while blocking nearly all ultraviolet rays that can fade your furniture and flooring.

The best part? You still get to enjoy plenty of natural light, keeping your space bright and beautiful. With LoE-366 you can have comfort, protection, and clarity, all in one elegant solution.

All doors come with double glazed tempered glass featuring Low-E 366, filled with Argon gas for energy efficiency.

Tinted and laminated glass options are also available.

INSTALLATION ASSURANCE

We understand finding the right installer to install this type of doors can be a challenge. Most people would agree that the best experience is the one where things are done right the first time. That belief shaped with real-world-experience is what led us to we made a bold intentional decision to include on-site, in person guided installation with every URBN Patio Door purchase.

While it may sound unconventional, experience has taught us, that by having an expert on site from day one, supporting the installer upfront creates confidence, prevents issues and delivers what everyone wants, smooth installations, satisfied contractors, happy customers and doors that perform exactly as designed.

It's a thoughtful, intentional choice that benefits everyone involved, and builds lasting trust.

CUSTOM ALUMINUM CORNER DOOR

TWO ROOMS. TWO DOORS. ONE EXTRAORDINARY EXPERIENCE.

KEY FEATURES

SLIDE AND STACK OPERATION

POWDER COATING COLORS

BLACK

WHITE

OVER 200 RAL COLORS

SILL OPTIONS

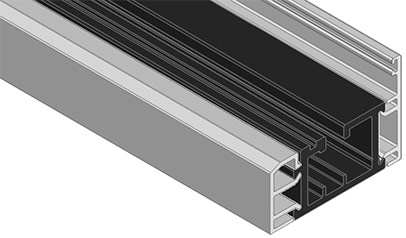

UPSTAND

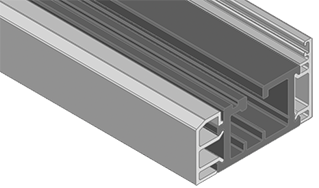

LOW THRESHOLD

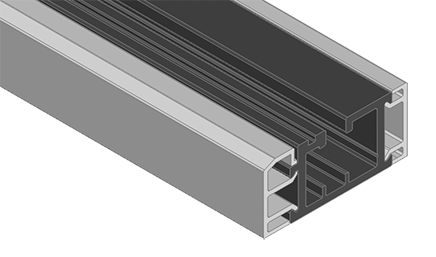

FLUSH

Drawings

IN-SWING AND OUT-SWING CONFIGURATIONS EXAMPLES

Inside Corner

Outside Corner

INSWING AND OUTSWING CONFIGURATION EXAMPLES

5 Panel systems

6 Panel systems

ELECTRIC SMART LOCK AS STANDARD

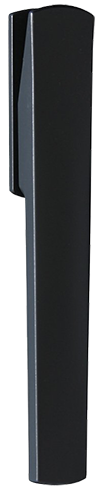

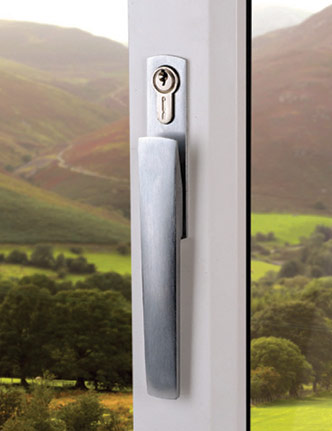

VIVO HANDLE

GLASS

INSTALLATION ASSURANCE
