Name: Custom Aluminum Folding Flag Door
Brand: URBN Patio Doors
Availability: InStock

FLAG DOORS ARE THE ULTIMATE CHOICE, FOR PEOPLE THAT LOVE TO HOST AND ENTERTAIN.

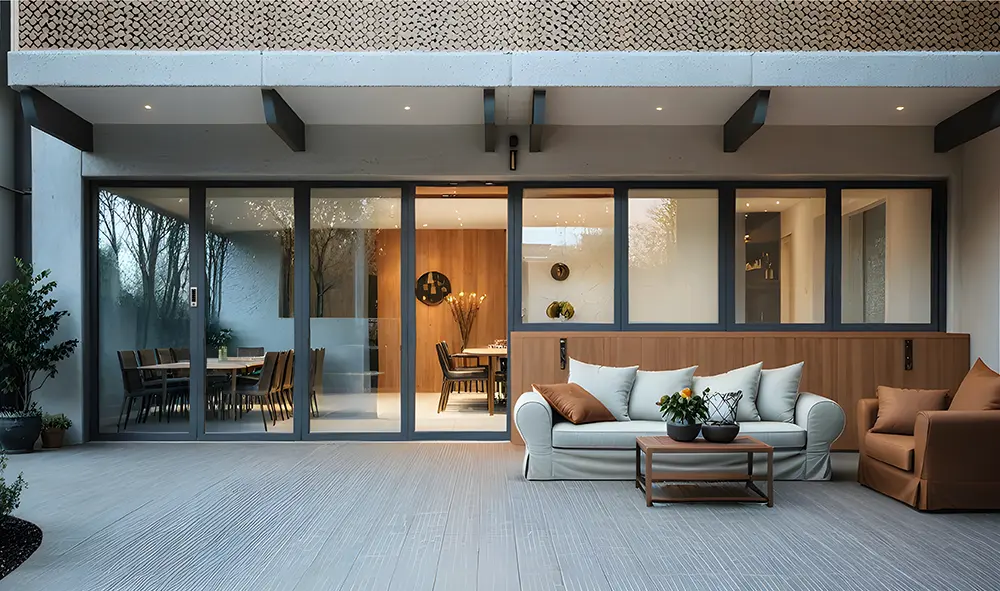

The URBN Patio doors Flag door is a sophisticated solution that keeps you and your guests in the center of every moment. By combining a folding door and a folding window into one seamless unit.

The door panels slide-fold-stack to one side, while the window panels slide-fold-stack to the other. Transforming the kitchen, living and the outdoors into one spectacular large space, the perfect place to entertain, flowed with natural light, unobstructed views and serving access.

Never miss a moment, whether you are cooking, serving meals or preparing drinks, everyone remains connected.

For added comfort, URBN's retractable screens integrate seamlessly to the flag door, delivering year-round usability in a refined, intelligently designed solution.

KEY FEATURES

• U-value 0.28 meets Title 24 California requirements.

• Custom Sizing: All our doors are built to your specifications.

• Hinge-free individual panels.

• Ultimate flexibility with full, independent panel control for year-round use.

• From one panel to expansive opening widths.

• Maximum height of 10 feet.

• Bottom rolling design, reduces structural demands, construction costs and time.

• One main door: all panels glide and stack next to the main door.

• Two main doors: Choose the number of panels to slide and stack on each side.

• Patent Pending upgraded operational hardware featuring new hold-open-panel.

• In-swing or out-swing

• Robust, thermally-strong frame, resists thermal-bowing.

• Slimmer frame maximizes glass area, views and light.

• Panel's covers with built-in weather seals.

• Single finish color or Dual-tone colors.

• Smart lock in every door.

• Guided installation with and URBN technician on-site, included in purchase.

• 10 Year Warranty.

• Priced below similar systems.

Max Panel width
Height – Panel width
8ft.                  40”
9ft.                  37”
10ft.                 34”

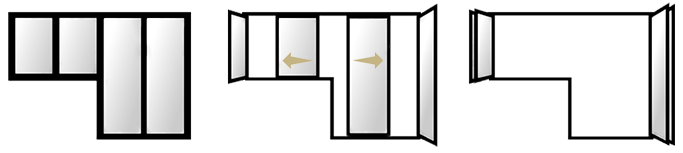

SLIDE AND STACK OPERATION

TO OPEN THE DOOR OR THE WINDOW

• Unlock and open the main door, push the button from the inside. Use key for manual locks.
• Slide the next panel towards the end until it stops, grab the handle and turn it upwards.
• Swing the panel open and stack next to the main door.
• Repeat the process with the rest of the panels.
• Follow the same steps to open the window

TO CLOSE THE DOOR OR THE WINDOW
• Swing the first panel fully onto the track.
• Grab the handle and turn it downwards.
• Slide the panel to its original position.
• Repeat the process with the remaining panels.
• Close the main door, smart lock automatically locks. Use key for manual locks
• Follow the same steps to close the window.

Request a Quote

IN-SWING AND OUT-SWING CONFIGURATION EXAMPLES

Here's what you need to know:

A flag door system consists of a window and a door combination each section with its own main door. The system requires a minimum of 2 panels for the window section and 2 panels for the door section. From there, you can add as many panels to either side as your project requires, there's no cap. The only key detail to keep in mind is making sure the opening header is structurally engineered appropriately to support the opening full span.

Following are some configuration examples, either side as the window or door.

4 Panel systems

Two main doors

5 Panel systems

Two main doors

6 Panel systems

Two main doors

ELECTRIC SMART LOCK AS STANDARD

Control your door remotely, create temporary access codes or deactivate with ease. With auto-lock functionality, your door secures itself once closed. Even during a power outage, the built-in battery backup ensures continued protection.

Access your home your way:
• Smartphone Access — Lock and unlock from anywhere.
• Code Access — Create and share unique codes.
• Key Fob Access — Quick and secure, right in your pocket.
• Fingerprint Reader — Effortless entry at your fingertips

GLASS

LoE-366 unlike clear glass, it’s designed to treat different parts of the solar spectrum in a unique way. Its coating acts like a selective barrier, significantly reducing infrared light that causes heat buildup, while blocking nearly all ultraviolet rays that can fade your furniture and flooring.

The best part? You still get to enjoy plenty of natural light, keeping your space bright and beautiful. With LoE-366 you can have comfort, protection, and clarity, all in one elegant solution.

All doors come with double glazed tempered glass featuring Low-E 366, filled with Argon gas for energy efficiency.

Tinted and laminated glass options are also available.

INSTALLATION ASSURANCE

We understand finding the right installer to install this type of doors can be a challenge. Most people would agree that the best experience is the one where things are done right the first time. That belief shaped with real-world-experience is what led us to we made a bold intentional decision to include on-site, in person guided installation with every URBN Patio Door purchase.

While it may sound unconventional, experience has taught us, that by having an expert on site from day one, supporting the installer upfront creates confidence, prevents issues and delivers what everyone wants, smooth installations, satisfied contractors, happy customers and doors that perform exactly as designed.

It's a thoughtful, intentional choice that benefits everyone involved, and builds lasting trust.

CUSTOM ALUMINUM FLAG DOOR

FLAG DOORS ARE THE ULTIMATE CHOICE, FOR PEOPLE THAT LOVE TO HOST AND ENTERTAIN.

KEY FEATURES

SLIDE AND STACK OPERATION

POWDER COATING COLORS

BLACK

WHITE

OVER 200 RAL COLORS

SILL OPTIONS

UPSTAND

LOW THRESHOLD

FLUSH

Drawings

IN-SWING AND OUT-SWING CONFIGURATION EXAMPLES

4 Panel systems

5 Panel systems

6 Panel systems

ELECTRIC SMART LOCK AS STANDARD

VIVO HANDLE

GLASS

INSTALLATION ASSURANCE
